GMC Duramax Diesel Engines: 3.0L and 6.6L Explained

GMC builds two completely different engines under the Duramax name, and buyers here in Central Indiana regularly arrive asking for one without knowing which. The 3.0L Turbo-Diesel is an inline-six for the Sierra 1500, Yukon and Yukon XL. The 6.6L Turbo-Diesel is a V8, and it goes in the Sierra HD trucks. They are not two versions of the same engine. See what is in stock in our new vehicle inventory.

The simplest distinction is also the most useful. The 3.0L is the everyday diesel for a half-ton truck or full-size SUV. The 6.6L is the working diesel for a three-quarter-ton or one-ton truck. We can help you find either at Ed Martin Buick GMC of Anderson in Anderson, Indiana.

Black GMC Sierra HD AT4 pickup driving through a dusty open field

Jump to:

The core specifications show how clearly GMC separates the two Duramax engines.

Specification	Duramax 3.0L Turbo-Diesel	Duramax 6.6L Turbo-Diesel
Displacement and layout	3.0L inline-six	6.6L V8
Horsepower	305 hp	470 hp
Torque	495 lb-ft	975 lb-ft
Transmission	10-speed automatic	Allison 10-speed automatic
Engine code	LZ0	L5P
Vehicles	Sierra 1500, Yukon, Yukon XL	Sierra 2500 HD, Sierra 3500 HD
Fuel economy	EPA estimates vary by vehicle and drivetrain	No EPA figure published

Close-up of the grille and front end of a white GMC Sierra HD AT4 pickup

Vehicles That Use Each Duramax Engine

The vehicle determines which Duramax engine is available. GMC does not put both diesels into the same model and ask buyers to choose between them.

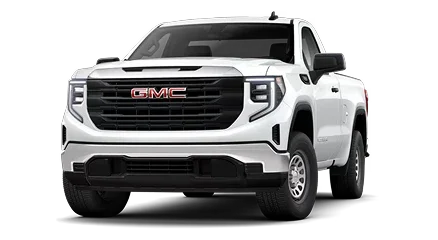

GMC Sierra 1500

The GMC Sierra 1500 offers the 3.0L Duramax inline-six. This is GMC's diesel option for its light-duty pickup. It pairs 305 horsepower and 495 lb-ft of torque with a 10-speed automatic transmission. The available engine is the LZ0, not the larger L5P used by the heavy-duty trucks.

The Sierra 1500 is also the only vehicle in this group with the published headline towing configuration. That maximum belongs to a specific build described below, not every diesel Sierra 1500.

GMC Yukon

The GMC Yukon offers the 3.0L Duramax inline-six. It gives full-size SUV buyers a diesel choice with the same 305-horsepower and 495-lb-ft output listed for the Sierra 1500. Both 2WD and 4WD Yukon configurations have their own EPA fuel-economy estimates.

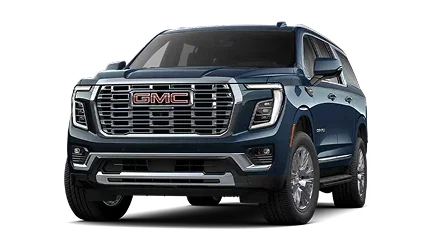

GMC Yukon XL

The Yukon XL also offers the 3.0L Duramax inline-six. Its extra name does not indicate a different diesel. The engine is the same LZ0, and its EPA estimates differ by 2WD or 4WD.

GMC Sierra 2500 HD and Sierra 3500 HD

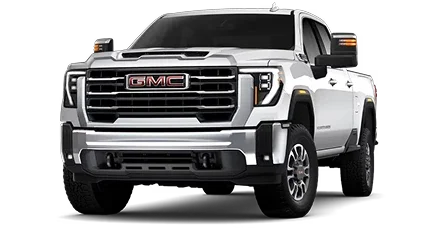

White GMC Sierra HD crew cab pickup, front three-quarter view

The GMC Sierra HD line includes the Sierra 2500 HD and Sierra 3500 HD. These heavy-duty pickups offer the 6.6L Duramax V8 with 470 horsepower, 975 lb-ft of torque, and an Allison 10-speed automatic. An available Power Take-Off transmission can also be paired with it.

The Sierra HD's highest towing ceilings are diesel achievements, but each towing rating depends on the truck's complete configuration. The Sierra HD guide is the right place to examine those configuration-specific capabilities.

The 3.0L Duramax in Detail

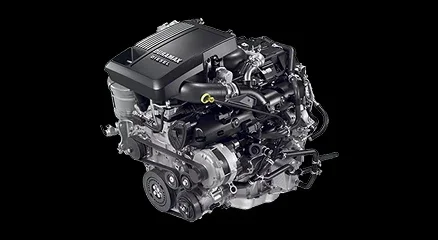

Duramax 3.0L turbo-diesel inline-six engine on a black background

The 3.0L Duramax LZ0 is a turbo-diesel inline-six for GMC's light-duty pickup and full-size SUVs. It produces 305 horsepower and 495 lb-ft of torque, uses a 10-speed automatic transmission, and includes Active Thermal Management.

Its EPA fuel-economy figures must be read by both vehicle and drivetrain. The estimates below are MPG, and none should be applied to a different row.

Vehicle and drivetrain	City MPG	Highway MPG	Combined MPG
Sierra 1500, 2WD	23	28	25
Sierra 1500, 4WD	22	26	24
Sierra 1500, 4WD, AT4X	19	20	19
Sierra 1500, 4WD, with mud terrain tires	21	24	23
Yukon, 2WD	21	26	23
Yukon, 4WD	20	24	22
Yukon XL, 2WD	21	26	23
Yukon XL, 4WD	20	24	22

On the Sierra 1500, the 4WD build with mud terrain tires returns 23 MPG combined, about 1 MPG below the regular Sierra 1500 4WD figure. The Sierra 1500 4WD AT4X is the clear outlier at 19 MPG combined. It sits well below every other vehicle and drivetrain listed in the table.

Those differences make the exact build important before using an EPA estimate. A shopper considering a Sierra 1500 2WD should use its 25 MPG combined estimate, while a shopper considering a Sierra 1500 4WD should use its 24 MPG combined estimate. A Yukon 2WD or Yukon XL 2WD carries a 23 MPG combined estimate. A Yukon 4WD or Yukon XL 4WD carries a 22 MPG combined estimate. These are vehicle-and-drivetrain figures, not one general rating for the 3.0L Duramax.

The 3.0L also reaches the Sierra 1500's headline towing figure of 13,300 pounds, but only in one precise build. Every one of these has to be true at once:

Double Cab
2WD
Standard bed
The Duramax 3.0L
The available Max Trailering Package
20-inch wheels and tires
The 3.73 axle

Change any one of them and the number changes with it, so it is not a figure you can carry over to the truck in front of you.

That combination of a light-duty application, published EPA estimates, and a configuration-specific towing maximum explains the 3.0L's role. It belongs on the shopping list when the chosen vehicle is a Sierra 1500, Yukon, or Yukon XL and the decision is whether diesel suits the job.

The 6.6L Duramax in Detail

Red GMC Sierra HD pickup towing a travel trailer on a mountain trail

The 6.6L Duramax L5P is the turbo-diesel V8 for the Sierra 2500 HD and Sierra 3500 HD. Its 470 horsepower and 975 lb-ft of torque put it in a different working category from the 3.0L inline-six. GMC pairs it with an Allison 10-speed automatic, and a Power Take-Off transmission is available.

No EPA fuel-economy figure is published for the 6.6L Duramax. The blank is not a missing Sierra HD estimate that should be borrowed from another truck. There is simply no EPA number to quote for this engine.

That means fuel-economy comparisons between the two Duramax engines cannot be made from matching EPA figures. The 3.0L has published estimates for each listed light-duty vehicle and drivetrain. The 6.6L does not have a published EPA figure. Treating the 3.0L table as a prediction for the heavier Sierra HD would mix different engines and different vehicles.

Black GMC Sierra HD AT4 pickup driving through a dry grass field

The 6.6L belongs in the discussion when the vehicle and work call for a heavy-duty truck. The Sierra HD's highest towing ceilings are achieved with the diesel. Because those limits are tied to exact configurations, we do not treat one number as the capability of every Sierra 2500 HD or Sierra 3500 HD.

This engine is not an upgrade choice inside the Sierra 1500, Yukon, or Yukon XL. It is the diesel offered in the Sierra HD range. That separation is essential when someone says only that a GMC has “the Duramax.” The engine code, displacement, and vehicle tell you which Duramax it actually has.

Which Duramax Fits You

The vehicle chooses the Duramax engine, not the other way around. This is not a direct 3.0L-versus-6.6L contest inside a single GMC.

Choose the vehicle around the work and passenger needs first. If that turns out to be a Sierra 1500 or one of the full-size SUVs, the 3.0L is the only Duramax available. Your real comparison is the 3.0L diesel against the gas choices within that vehicle.

If the right vehicle is a Sierra 2500 HD or Sierra 3500 HD, the 6.6L is the diesel available. The 3.0L is not offered in those heavy-duty trucks. Here again, the useful choice is diesel or gas within the Sierra HD configuration that fits the work.

For a half-ton pickup or full-size SUV, focus on the 3.0L and then examine the correct fuel-economy row for the vehicle and drivetrain. For a three-quarter-ton or one-ton truck, focus on the 6.6L and the exact Sierra HD configuration needed for the job. Do not use the 3.0L's EPA estimates or its published Sierra 1500 towing configuration to judge a Sierra HD.

Start with the body style and duty class that fit the work. A driver who needs a full-size SUV is choosing between the Yukon and Yukon XL, so the relevant Duramax is the 3.0L. A driver who needs a light-duty pickup is considering the Sierra 1500, which again points to the 3.0L. A driver whose work calls for a Sierra 2500 HD or Sierra 3500 HD is considering the 6.6L. This approach keeps engine specifications attached to the vehicles that actually offer them.

You can shop our new Buick and GMC inventory or order the one you want. For current offers, see the new Buick and GMC deals running now. If you want to compare the two engine roles in person, book a test drive.

Black GMC Sierra HD AT4 pickup hitched to an enclosed trailer in open country

GMC Duramax Warranty

Both GMC Duramax engines carry GMC's published vehicle coverage. The terms are summarized below.

Roadside assistance and a first maintenance visit are also included. Confirm the exact coverage terms for the vehicle you are considering.

Coverage	Term
Bumper-to-bumper limited	3 years / 36,000 miles
Powertrain	5 years / 60,000 miles
Corrosion, body and sheet metal	3 years / 36,000 miles
Rust-through perforation	6 years / 100,000 miles

Diesel Ownership Around Anderson

Diesel ownership around Anderson is less about climbing grades and more about pulling a load across the flat Tipton Till Plain and covering distance between fills. About two thirds of Madison County is farmland, with 682 farms across roughly 196,000 acres. That local work helps explain why diesel trucks have a practical audience here.

Winter brings ice, freezing rain, slush, and repeated freeze-thaw cycles. Numbered routes are pre-treated with brine, while county roads are treated later and more thinly. Because brine can remain on the undercarriage through winter, an undercarriage wash and a brake and rocker inspection are worth requesting. You can book a service appointment or review our service and parts specials.

Ed Martin Buick GMC of Anderson is on South Scatterfield Road, which carries State Road 9. We are about 2 miles north of Interstate 69 Exit 226. Check our hours and directions before visiting.

Front end of a white GMC Sierra HD AT4 pickup in snow at dusk

Frequently Asked Questions

Yes. GMC currently offers a 3.0L turbo-diesel inline-six called LZ0 and a 6.6L turbo-diesel V8 called L5P. They share the Duramax name, but they serve different vehicles and jobs.

The 3.0L Duramax is available in the GMC Sierra 1500, GMC Yukon, and GMC Yukon XL. It is the Duramax for GMC's light-duty pickup and full-size SUVs.

The 6.6L Duramax is available in the GMC Sierra 2500 HD and Sierra 3500 HD. Those are the two models within the Sierra HD range.

The 3.0L Duramax produces 305 horsepower and 495 lb-ft of torque. It runs through a 10-speed automatic.

The 6.6L Duramax produces 470 horsepower and 975 lb-ft of torque. It is paired with the Allison ten-speed transmission, and a Power Take-Off transmission is available.

It depends on the vehicle and the drivetrain. The Sierra 1500 2WD is EPA-estimated at 23 city, 28 highway, and 25 combined MPG. The Yukon 2WD and Yukon XL 2WD are each EPA-estimated at 21 city, 26 highway, and 23 combined MPG. Those figures lists every 2WD, 4WD, tire, and AT4X figure separately.

No EPA fuel-economy figure is published for the 6.6L Duramax. There is no EPA estimate to apply to the Sierra 2500 HD or Sierra 3500 HD.

No. Up to 13,300 pounds applies to a Sierra 1500 Double Cab, 2WD, standard bed, with the Duramax 3.0L, the available Max Trailering Package, 20-inch wheels and tires, and the 3.73 axle. It should not be applied to another configuration.

No. The Sierra 1500 and the two full-size SUVs offer the 3.0L Duramax. The Sierra 2500 HD and Sierra 3500 HD offer the 6.6L Duramax. The practical comparison is diesel against gas within the GMC you have chosen.
